概要

M5Stackには、
・Arduinoで開発できる、M5Stack
・MicroPythonで開発できる、M5Cloud
・スマホからビジュアルプログラミングに対応した、M5go
の3種類が出ている。ファームウェアを書き換えれば、開発環境を入れ替えることができる。

1. How to use flash download tool? Post by EspressifKelly » Wed Apr 15, 2015 3:20 am. Hi all, 1.Tool name: Flash download tool Click to download.
2. The tools are downloaded and installed into a directory specified during ESP-IDF Tools Installer process. By default, this is C: Users username.espressif. Add ESP-IDF tools to PATH using an export script ¶ ESP-IDF tools installer creates a Start menu shortcut for “ESP-IDF Command Prompt”.

Espressif Flash Download Toolsのインストール

Linuxの場合：

The one download tool supports all of Espressif’s chips (ESP8266 and variants as well). It would probably be a good idea to select the flash size manually rather than just rely on the automatic size detection.

esptoolのインストール： pip install esptool

Windowsの場合：

Espressif Flash Download Toolsをダウンロードする。
Espressif Flash Download Tool

ファームのダウンロード

以下から*.binのファイルをダウンロードする。

M5Stack
https://github.com/m5stack/M5Cloud/tree/master/firmwares/OFF-LINE
M5Cloud
https://github.com/m5stack/M5Cloud/tree/master/firmwares
M5go
https://github.com/m5stack/M5GO/tree/master/firmware/v0.11

ファームの書き換え手順

Linuxの場合：

1.Flash ROMの内容を消去（erase）する、/dev/ttyUSB0はM5Stackのポートを調べて書き換える。

esptool.py --chip esp32 --port /dev/ttyUSB0 erase_flash

2.Flash ROMにファームウェアを書き込む、firmware.binはファームウェアのファイル名に書き換える。

esptool.py --chip esp32 --port /dev/ttyttyUSB0 write_flash --flash_mode dio -z 0x1000 firmware.bin

Windowsの場合：

1.esp32 download toolsを選択する。

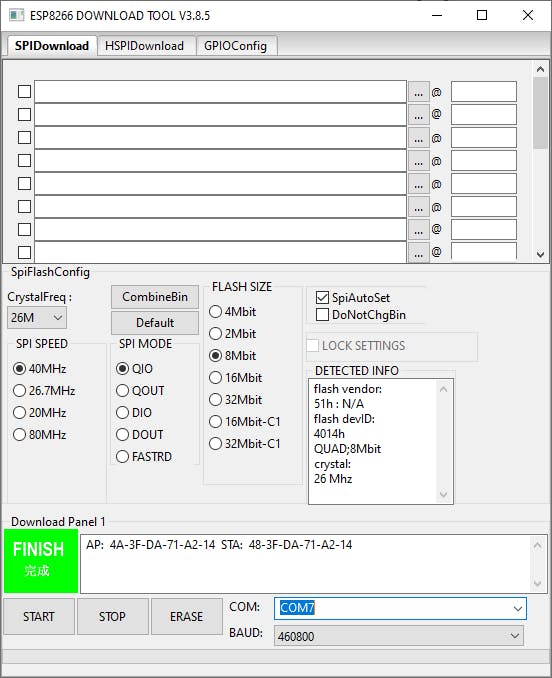

2.SPI Downloadタブから、ファームウェアを選択し、Eraseを押した後、Startを押す。

参考

M5GOのfirmwareをM5Stack用に書き換える（＋戻し方）http://littlewing.hatenablog.com/entry/2018/05/21/153646
M5Cloud
https://github.com/m5stack/M5Cloud/blob/master/README_JP.md

ESP-IDF build process relies on a number of tools: cross-compiler toolchains, CMake build system, and others.

Installing the tools using an OS-specific package manager (like apt, yum, brew, etc.) is the preferred method when the required version of the tool is available. This recommendation is reflected in the Getting Started guide. For example, on Linux and macOS it is recommended to install CMake using an OS package manager.

However, some of the tools are IDF-specific and are not available in OS package repositories. Furthermore, different versions of ESP-IDF require different versions of the tools to operate correctly. To solve these two problems, ESP-IDF provides a set of scripts for downloading and installing the correct versions of tools, and exposing them in the environment.

The rest of the document refers to these downloadable tools simply as “tools”. Other kinds of tools used in ESP-IDF are:

• Python scripts bundled with ESP-IDF (such as idf.py)

• Python packages installed from PyPI.

The following sections explain the installation method, and provide the list of tools installed on each platform.

Note

This document is provided for advanced users who need to customize their installation, users who wish to understand the installation process, and ESP-IDF developers.

If you are looking for instructions on how to install the tools, see the Getting Started Guide.

Tools metadata file¶

The list of tools and tool versions required for each platform is located in tools/tools.json. The schema of this file is defined by tools/tools_schema.json.

This file is used by tools/idf_tools.py script when installing the tools or setting up the environment variables.

Tools installation directory¶

IDF_TOOLS_PATH environment variable specifies the location where the tools are to be downloaded and installed. If not set, IDF_TOOLS_PATH defaults to HOME/.espressif on Linux and macOS, and %USER_PROFILE%.espressif on Windows.

Inside IDF_TOOLS_PATH, the scripts performing tools installation create the following directories:

• dist — where the archives of the tools are downloaded.

• tools — where the tools are extracted. The tools are extracted into subdirectories: tools/TOOL_NAME/VERSION/. This arrangement allows different versions of tools to be installed side by side.

GitHub Assets Mirror¶

Most of the tools downloaded by the tools installer are GitHub Release Assets, which are files attached to a software release on GitHub.

If GitHub downloads are inaccessible or slow to access, it’s possible to configure a GitHub assets mirror.

To use Espressif’s download server, set the environment variable IDF_GITHUB_ASSETS to dl.espressif.com/github_assets. When the install process is downloading a tool from github.com, the URL will be rewritten to use this server instead.

Any mirror server can be used provided the URL matches the github.com download URL format: the install process will replace https://github.com with https://${IDF_GITHUB_ASSETS} for any GitHub asset URL that it downloads.

Note

The Espressif download server doesn’t currently mirror everything from GitHub, it only mirrors files attached as Assets to some releases as well as source archives for some releases.

idf_tools.py script¶

tools/idf_tools.py script bundled with ESP-IDF performs several functions:

• install: Download the tool into ${IDF_TOOLS_PATH}/dist directory, extract it into ${IDF_TOOLS_PATH}/tools/TOOL_NAME/VERSION.

  install command accepts the list of tools to install, in TOOL_NAME or TOOL_NAME@VERSION format. If all is given, all the tools (required and optional ones) are installed. If no argument or required is given, only the required tools are installed.

• download: Similar to install but doesn’t extract the tools. An optional --platform argument may be used to download the tools for the specific platform.

• export: Lists the environment variables which need to be set to use the installed tools. For most of the tools, setting PATH environment variable is sufficient, but some tools require extra environment variables.

  The environment variables can be listed in either of shell or key-value formats, set by --format parameter:

  • shell produces output suitable for evaluation in the shell. For example,

    on Linux and macOS, and

    on Windows.

    Note

    Exporting environment variables in Powershell format is not supported at the moment. key-value format may be used instead.

    The output of this command may be used to update the environment variables, if the shell supports this. For example:

  • key-value produces output in VARIABLE=VALUE format, suitable for parsing by other scripts:

    Note that the script consuming this output has to perform expansion of $VAR or %VAR% patterns found in the output.

• list: Lists the known versions of the tools, and indicates which ones are installed.

• check: For each tool, checks whether the tool is available in the system path and in IDF_TOOLS_PATH.

Install scripts¶

Shell-specific user-facing scripts are provided in the root of ESP-IDF repository to facilitate tools installation. These are:

• install.bat for Windows Command Prompt

• install.ps1 for Powershell

• install.sh for Bash

Aside from downloading and installing the tools into IDF_TOOLS_PATH, these scripts prepare a Python virtual environment, and install the required packages into that environment.

Export scripts¶

Since the installed tools are not permanently added into the user or system PATH environment variable, an extra step is required to use them in the command line. The following scripts modify the environment variables in the current shell to make the correct versions of the tools available:

• export.bat for Windows Command Prompt

• export.ps1 for Powershell

• export.sh for Bash

Note

To modify the shell environment in Bash, export.sh must be “sourced”: ../export.sh (note the leading dot and space).

export.sh may be used with shells other than Bash (such as zsh). However in this case the IDF_PATH environment variable must be set before running the script. When used in Bash, the script will guess the IDF_PATH value from its own location.

In addition to calling idf_tools.py, these scripts list the directories which have been added to the PATH.

Other installation methods¶

Depending on the environment, more user-friendly wrappers for idf_tools.py are provided:

• IDF Tools installer for Windows can download and install the tools. Internally the installer uses idf_tools.py.

• Eclipse plugin for ESP-IDF includes a menu item to set up the tools. Internally the plugin calls idf_tools.py.

• Visual Studio Code extension for ESP-IDF includes an onboarding flow. This flow helps setting up the tools. Although the extension does not rely on idf_tools.py, the same installation method is used.

Custom installation¶

Although the methods above are recommended for ESP-IDF users, they are not a must for building ESP-IDF applications. ESP-IDF build system expects that all the necessary tools are installed somewhere, and made available in the PATH.

List of IDF Tools¶

xtensa-esp32-elf¶

Toolchain for Xtensa (ESP32) based on GCC

License: GPL-3.0-with-GCC-exception

More info: https://github.com/espressif/crosstool-NG

xtensa-esp32s2-elf¶

Toolchain for Xtensa (ESP32-S2) based on GCC

License: GPL-3.0-with-GCC-exception

More info: https://github.com/espressif/crosstool-NG

xtensa-esp32s3-elf¶

Toolchain for Xtensa (ESP32-S3) based on GCC

License: GPL-3.0-with-GCC-exception

More info: https://github.com/espressif/crosstool-NG

riscv32-esp-elf¶

Toolchain for 32-bit RISC-V based on GCC

License: GPL-3.0-with-GCC-exception

More info: https://github.com/espressif/crosstool-NG

esp32ulp-elf¶

Toolchain for ESP32 ULP coprocessor

License: GPL-2.0-or-later

More info: https://github.com/espressif/binutils-esp32ulp

esp32s2ulp-elf¶

Toolchain for ESP32-S2 ULP coprocessor

License: GPL-2.0-or-later

More info: https://github.com/espressif/binutils-esp32ulp

cmake¶

CMake build system

On Linux and macOS, it is recommended to install CMake using the OS-specific package manager (like apt, yum, brew, etc.). However, for convenience it is possible to install CMake using idf_tools.py along with the other tools.

License: BSD-3-Clause

More info: https://github.com/Kitware/CMake

openocd-esp32¶

OpenOCD for ESP32

License: GPL-2.0-only

More info: https://github.com/espressif/openocd-esp32

Espressif Flash Download Tools

ninja¶

Ninja build system

On Linux and macOS, it is recommended to install ninja using the OS-specific package manager (like apt, yum, brew, etc.). However, for convenience it is possible to install ninja using idf_tools.py along with the other tools.

License: Apache-2.0

More info: https://github.com/ninja-build/ninja

idf-exe¶

IDF wrapper tool for Windows

License: Apache-2.0

More info: tools/windows/idf_exe

ccache¶

Ccache (compiler cache)

License: GPL-3.0-or-later

Espressif Flash Download Tool Windows 10

More info: https://github.com/ccache/ccache

dfu-util¶

dfu-util (Device Firmware Upgrade Utilities)

License: GPL-2.0-only

More info: http://dfu-util.sourceforge.net/
